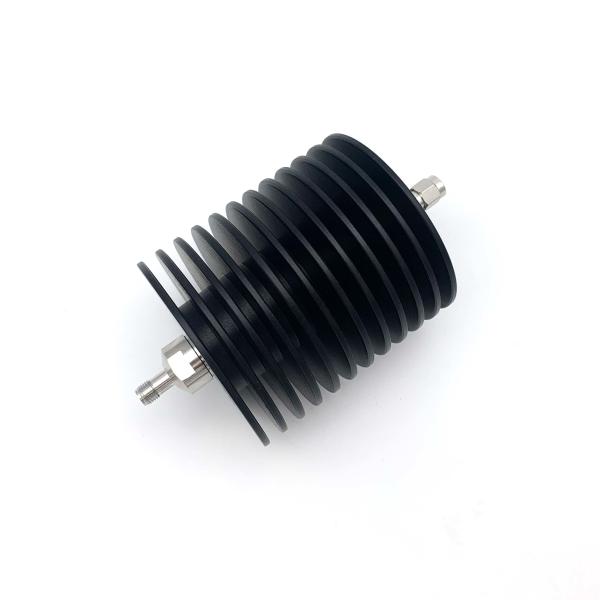

50 Watts Microwave Fixed Attenuator 50dB Black Anodizing

Model Number : ZSJXX-50RS-18T

Place of Origin : Chengdu,China

power handling : 50W

attenuaiton : 1-50dB

VSWR : 1.3

Connector : SMA-Male/Female

Housing : Aluminum, Black Anodize

Temperature Range : -55ºC ~ +125ºC

Brand Name : Zysen

MOQ : 1pc

Delivery Time : 2-4 Weeks

Price : Negotiable

Payment Terms : T/T, L/C,D/A

Certification : ISO9001

Contact Now

DC-18GHz 50Watts Fixed Attenuator,6~60dB Attenuation,Round Type

Zysen's 100W attenuators available with DC-3GHz, DC-6GHz, DC-12.4GHz, DC-18GHz for different applications,

50 impedance

SMA&N Female/Male connectors.

Available with 6~10, 20 , 30dB&40dB to 50dB, 60dB attenutation.

1week short delivery time

  • Electrical Specifications
Frequency Range DC – 18GHz
Power 50W CW @ 25ºC
Attenuation 1~10dB,20dB 20dB 40~50dB
Attenuation Accuracy ±0.8dB max ±0.9dB max ±1.3dB max
VSWR 1.45 max
Impedance 50ohm
Input Connector SMA-Male
Output Connector SMA-Female
Temperature Range -55ºC ~ +125ºC
  • Mechanical Specification
Connector Material Cu
Housing Aluminum, Black Anodize
